Parameter Value

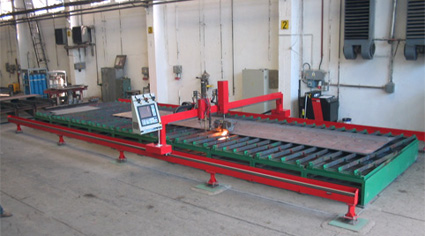

Thermal cutting machine CNC-controlled
CM-DD-12 x 25-2z, ox+pl, 3torch
Working area size - alongside the X-axis up to 2,500 mm - alongside the Y-axis up to 12,000 mm Working table size 2 500 x 12 000 mm - number of devices for vertical motion 2 Thickness of cutting: - for straight oxy - propane cutting up to 200 mm - for straight plasma cutting up to 60 mm Three – torch oxy propane cutting device for making
upper chamfer, straight part and lower chamfer –
inclination from 0º to 45º and rotation 720º 1 - thickness of cutting of the three – torch device up to 60 mm Power supply along the X and Y-axis rack and gear
M = 1.5 mm Number of power suppliers along Y-axis 2 Feedback along the X and Y-axes encoder inside
the engine Accuracy of positioning in the whole working area ±0.35 mm Repetition of the position of the torch in
multiple positioning ±0.05 mm Speed of the motion along the axes up to 25 m/min
Machinery Electronics Electrics Automation Communications
|
Categories
|
 |
Thermal cutting machine CNC-controlled CM-DD-12 x 25-2z, ox+pl, 3torch
