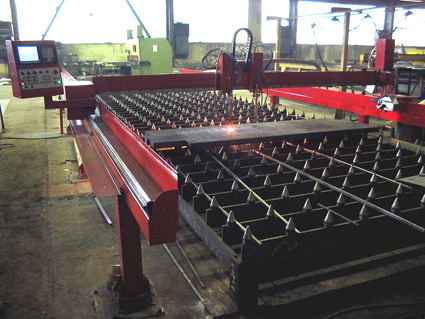

Oxyfuel cutting machine CM DD 3,5 m x 12,0 m
Parameter | Value |
| Working area size: | |
| - alongside the X-axis | up to 3500 mm |
| - alongside the Y-axis | up to 12000 mm |
| Number of modules for vertical cutting | 2 |
| Number of devices for gradient (0о - 45о) and rotation (360о) cutting | 1 |
| Distance of the devices: | |
| - for vertical cutting | 140 mm |
| - for gradient cutting | 70 mm |
| Cutting thickness: | |
| - for vertical cutting | up to 300 mm |
| - for gradient cutting | up to 60 mm |
| Power drive along X- and Y-axis | Rack and gear M = 1.5mm |
| Power drive along Y-axis | doubleside |
| Feedback along the X and Y-axis | Encoder inside the engine |
| Accuracy of torch positioning in the whole working area | ±0.45 mm |
| Repeаtition of the torch position in multiple positioning | ±0.05 mm |
| Speed of the motion along the axes | up to 10 m/min |
