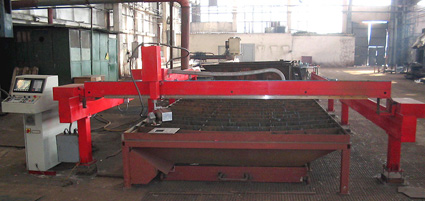

Plasma cutting machine CM DD 8,0 m x 2,5 m


Plasma cutting machine CM DD 8,0 m x 2,5 m




Parameter

Value

 Working area size:
   - alongside the X-axis up to 2500 mm
   - alongside the Y-axis up to 8000 mm
 Number of devices for gradient (0о - 45о)
 and rotation (360о) cutting
 1
 Distance of the devices for vertical motion   80 mm
 Plasma cutting thickness: up to 30 mm
 Power drive along X- and Y-axis Rack and gear
 M = 1.5mm
 Power drive along Y-axis doubleside
 Feedback along the X and Y-axis   Encoder inside
 the engine
 Accuracy of plasma torch positioning in
 the whole working area
 ±0.3 mm
 Repeаtition of the plasma torch position in
 multiple positioning
 ±0.05 mm
 Speed of the motion along the axes up to 10 m/min
 Plasma source "Hypertherm" USA model "Power Max"
 1650 – 100 A
